Review: Piaggio engine differences - Hi-PER-2 vs. Piaggio old
It is a common question across the scooter world. What is the difference between the Piaggio Hi-PER-2 and the Hi-PER-1 engine?The engine used in almost all models including the Piaggio NRG, Gilera Runner, Piaggio TPH, Gilera Stalker, Piaggio Zip and so on. Answers are usually very brief and inaccurate. Therefore TuningMatters.com is giving you a proper review on the differences of these 2 engine blocks.
First things first

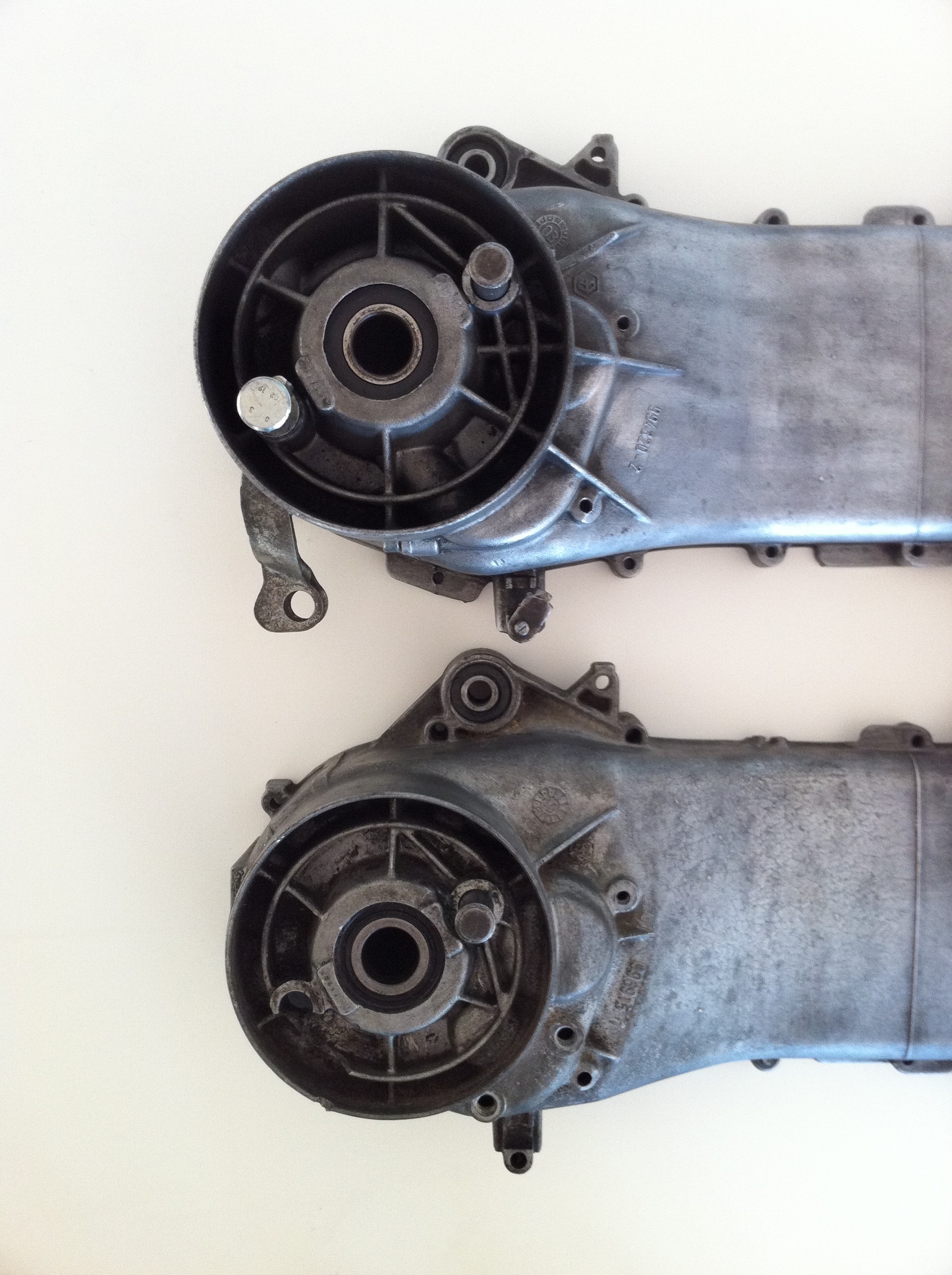

First of all I want to outline that additionally to the differences that I list here, there are some further things to consider. The new engines are also available as a disc brake version. Unless you replace the complete brake system it is not possible to swap your drum brake engine with a disk brake one.
The Hi-PER-2 block is sometimes also called Hyper2 and Hiper2 engine. The old Piaggio engine is sometimes also referred to as Hyper1, Hyper, or Hiper1 engine.
In this review I will only discuss the engine blocks for 2-stroke carburetor engines. The injection "purejet" models are currently still not a good basis for tuning and were therefore left out.
Also, there is a Hi-PER-2-Pro version. It is used in the latest Runner and NRG models. It is not true that this engine is the "purejet" injection model. However, the only difference we are aware of is the low-pressure connector next to the intake. If you know more about this model please let us know in the comments. It is not covered in this review.

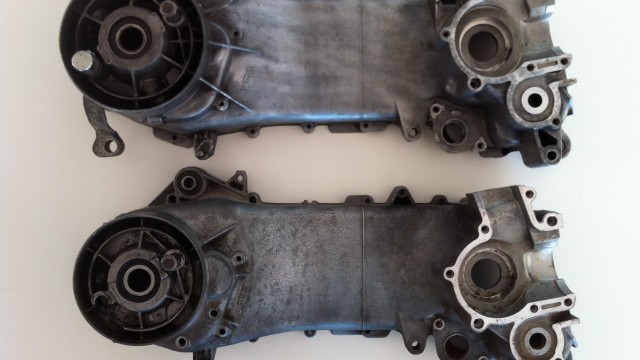

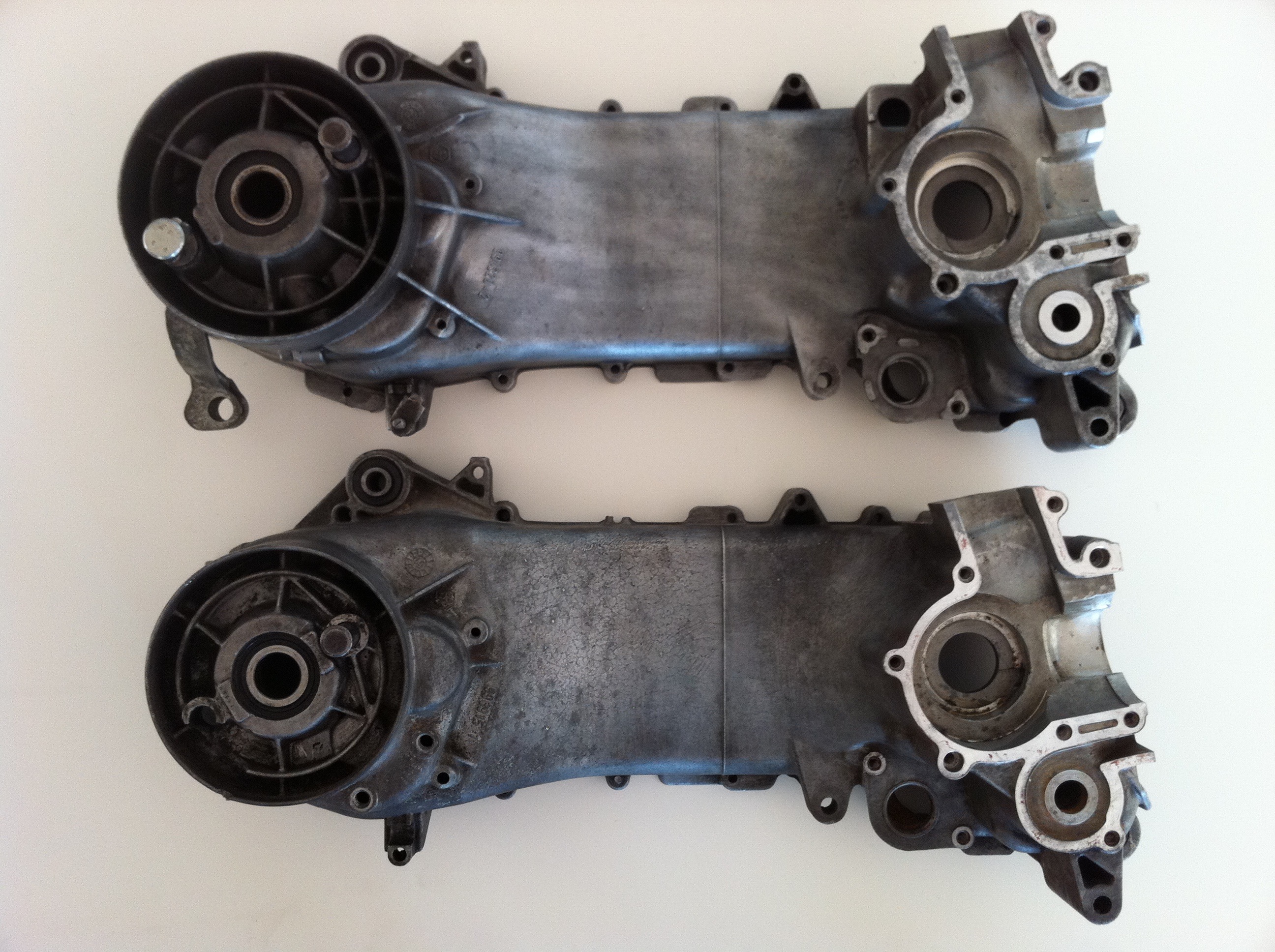

On all pictures in this post the Hi-PER-2 engine is always the top one, whereas the old Piaggio engine is the bottom one. The pictured engines are in a used condition and especially the old model has seen some better days...
Can I replace my old engine with a Hi-PER-2 engine?
The most important thing to know is that both engines can be used interchangeably. The differences are minor and most of the parts like cylinders, reed valves, exhausts, manifolds, etc. can be simply fitted to the other engine. The variomatic in the new models has changed slightly and should therefore be replaced with the new one. The same is true for the torque driver and the primary gear.
It does not matter so much if you buy a LC or an AC model since they both are the same. To fit the original waterpump to an AC block tho, it is necessary to drill a little hole...
Oil

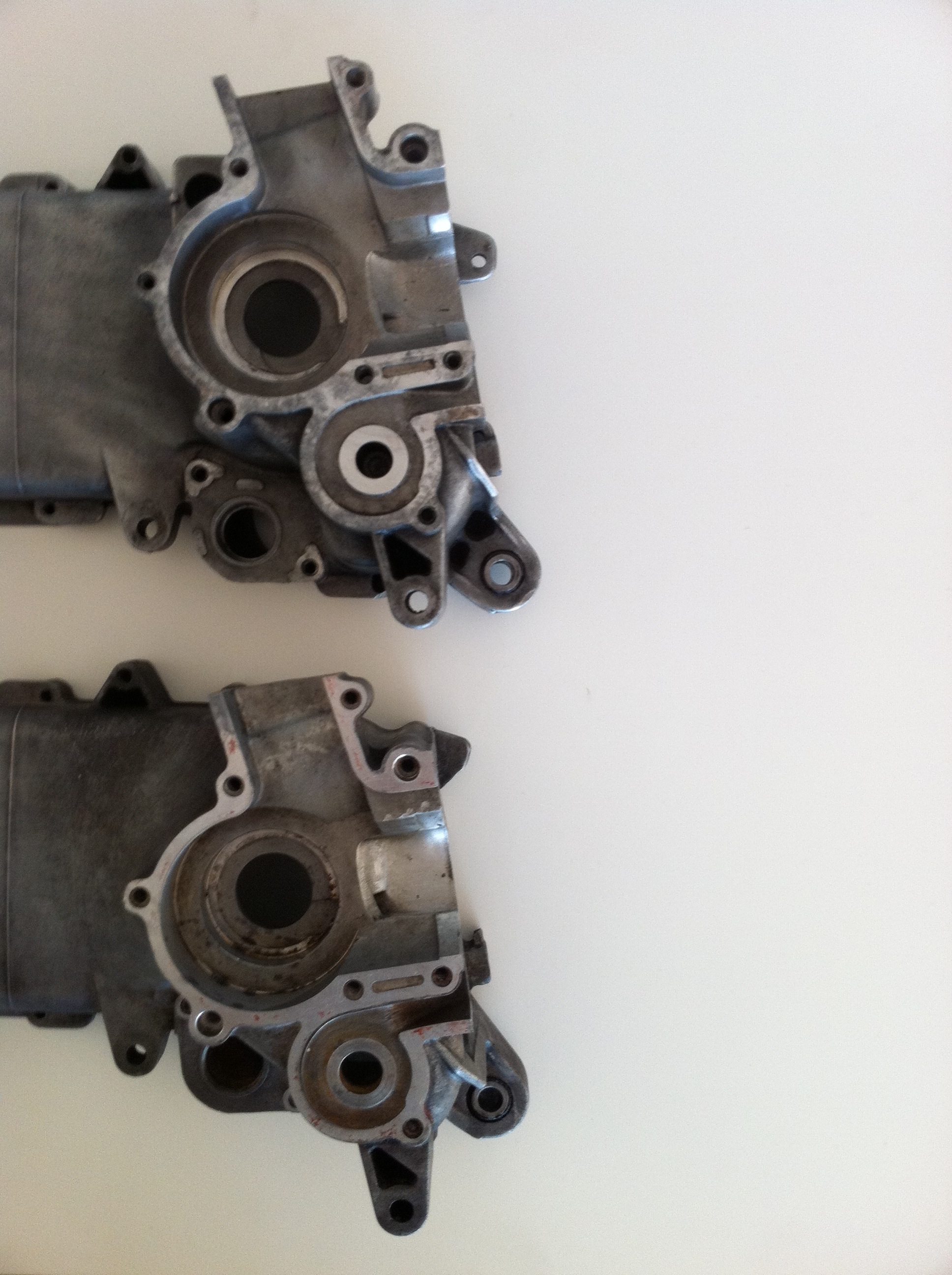

Where are the differences now that matter: Take a closer look at the picture (all pictures always show the Hi-PER-2 on top and the old Piaggio engine on the bottom). You'll notice two screw holes on the old engine. these were used to replace the gear oil and were very annoying to all of us. With the new engine these screws have been replaced with a drilling on the side of the engine where an oil dipstick is now used. To me this is one of the biggest improvements of the new engines...
Gear box

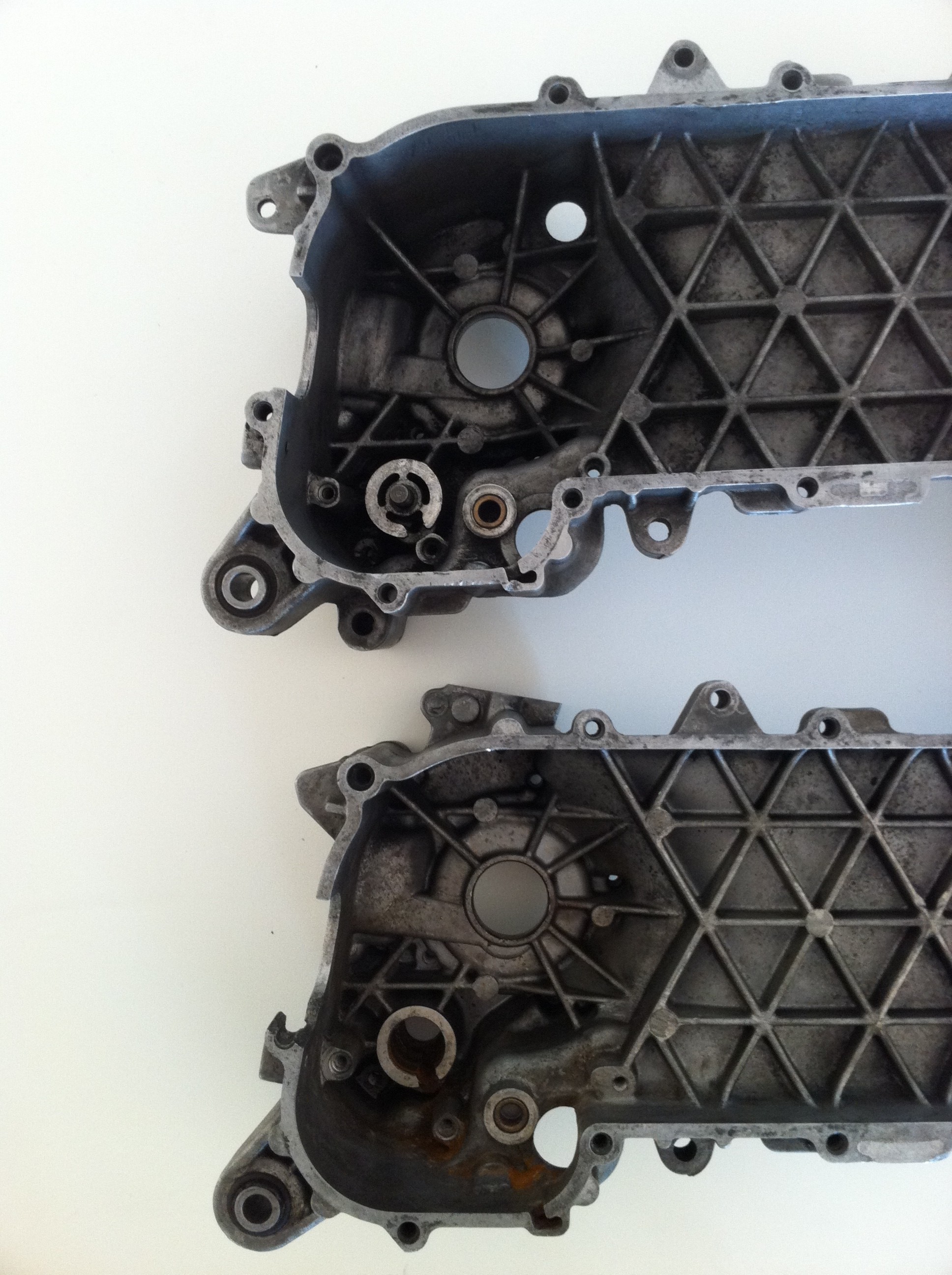

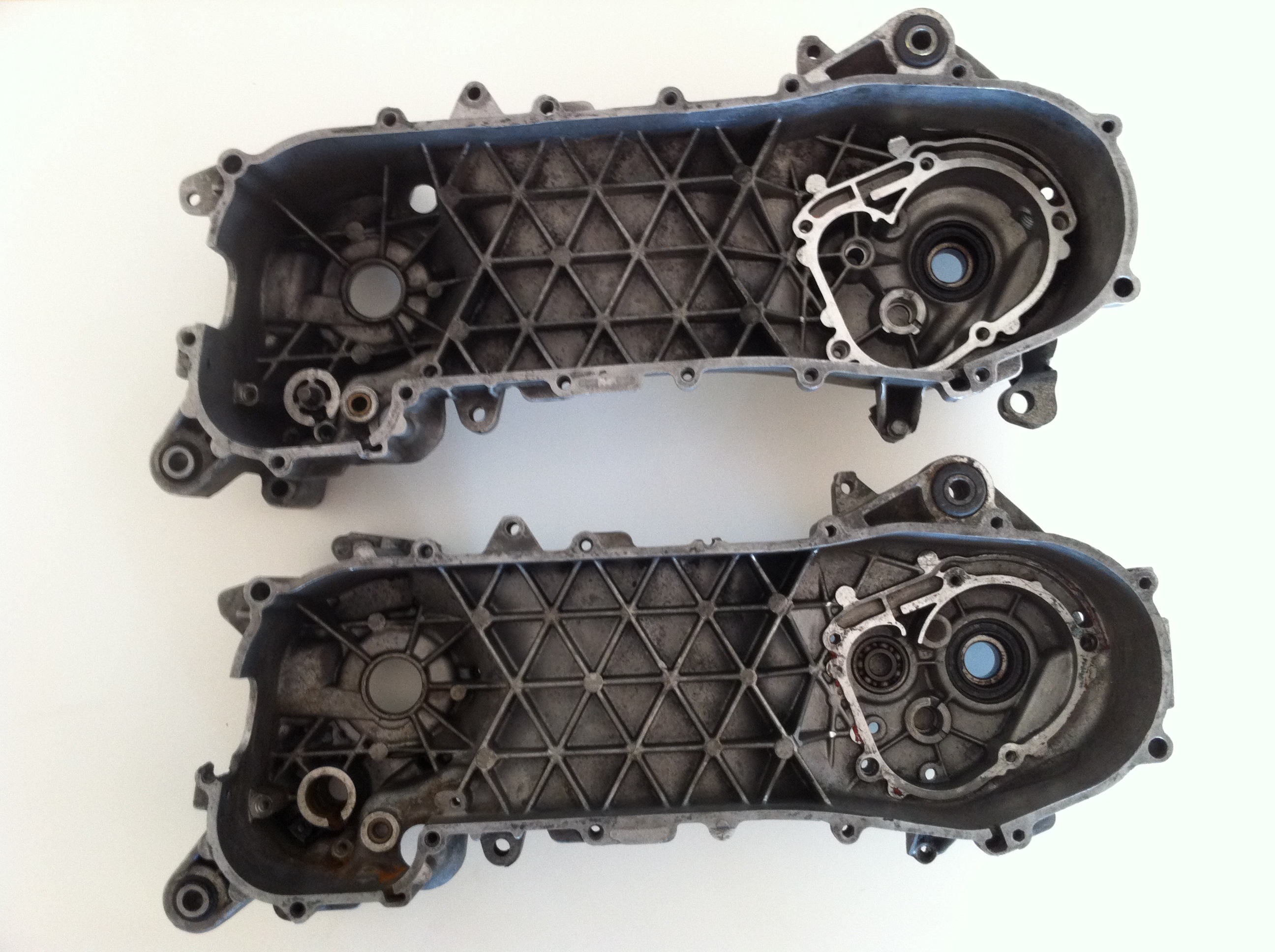

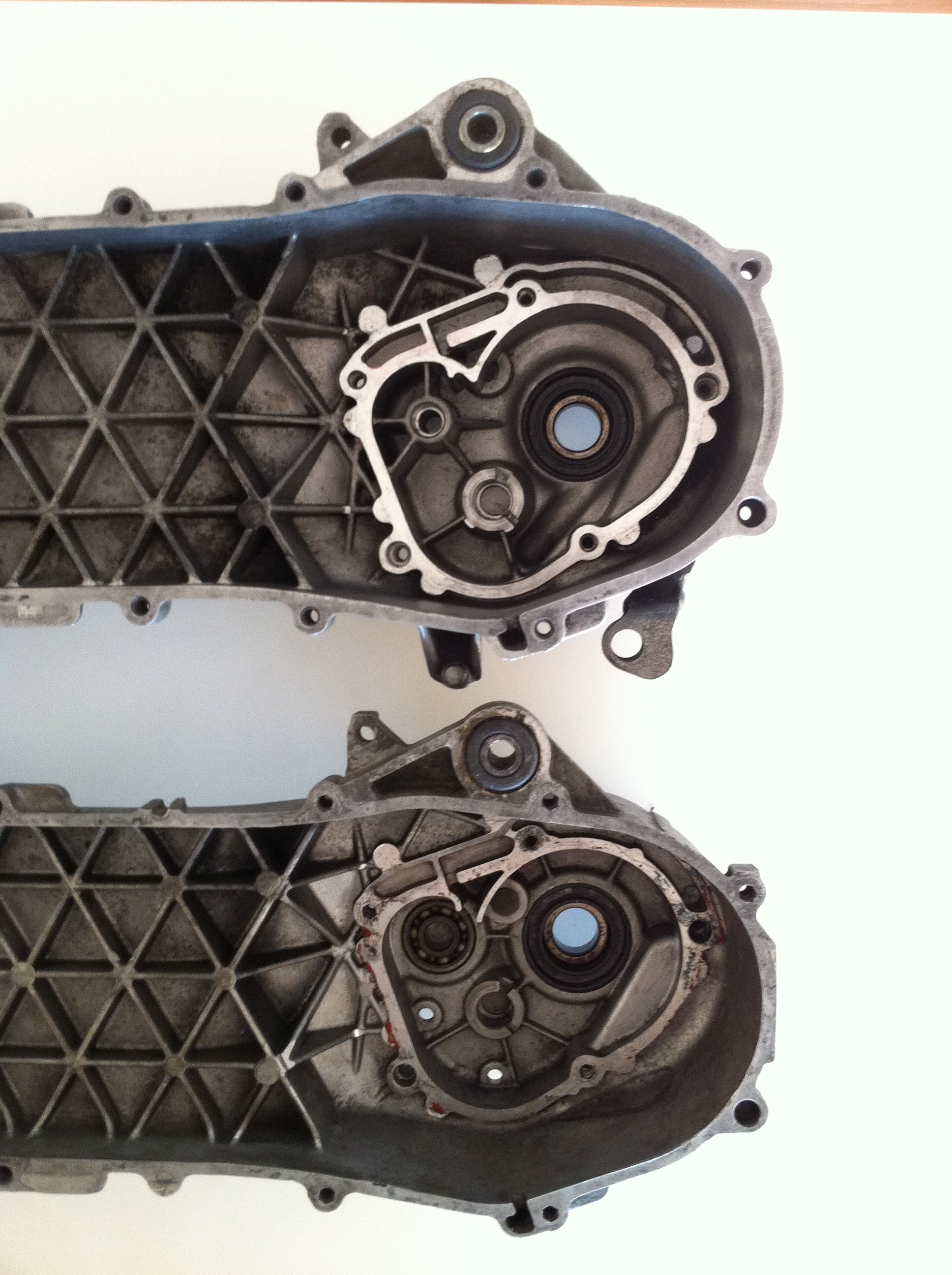

For the next difference we will need to turn the block around. The gear box has seen some additional changes. On the old models the primary gear used to have its own ball bearing inside of the block. On the new model this has been moved from the block to the transmission cover to improve stability. This also means that the primary gear is not interchangeable between these two engines!
Ignition

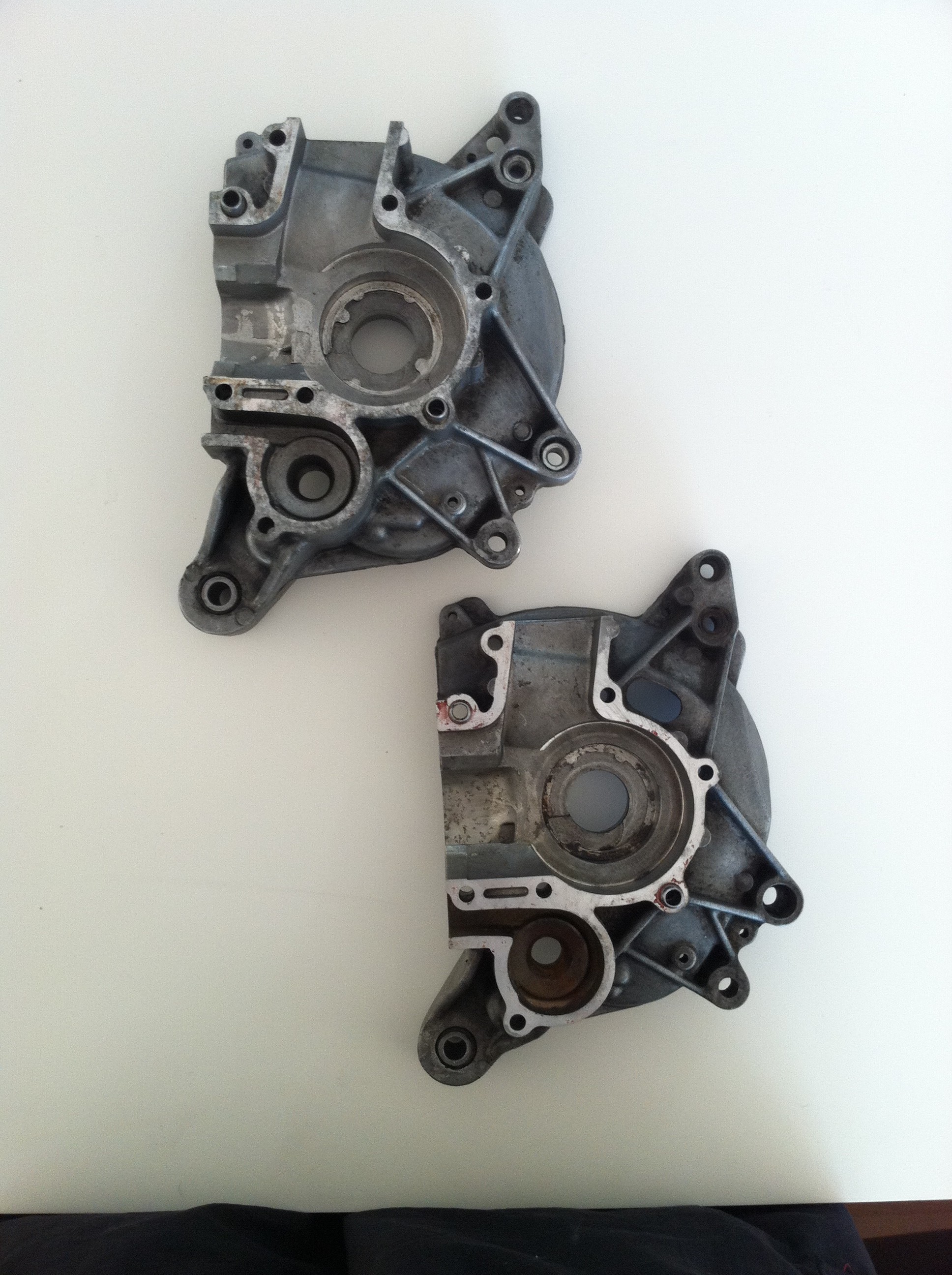

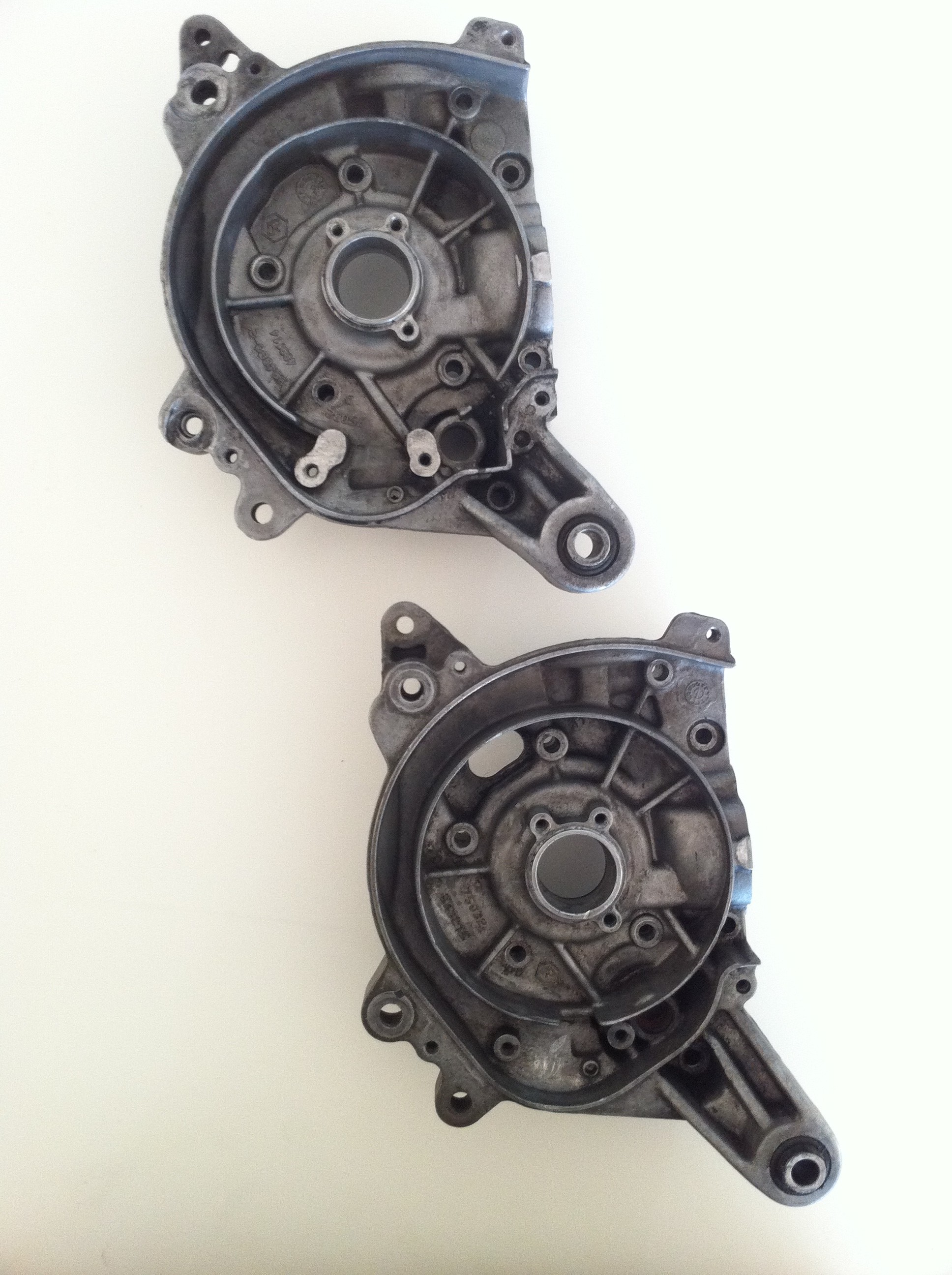

A last notable difference can be found on the ignition side of the block. The newer models use a cable connector whereas the old blocks had the cabling going through the block. I believe this should be mentioned even though it should not be a problem for anyone to build a workaround if he runs into any problems with the cables.
Piaggio engine gallery
I have created a gallery with in detail, high resolution pictures of both engines for you to compare. Find this gallery below. The Hi-PER-2 engine is always the top one, whereas the old Piaggio engine is the bottom one.
25 Comments
Now with this ocassion,i want to swap the old engine with hyper 2 Water Cooled and disk brake.
Wikipedia says that any Hyper 2 engine since 1998 can be water or air cooled (depending on the version it is built as) the same beeing true with disk brakes.
I can all the engine can be converted but not all have disk from the factory.
I also need to use a bigger wheel to have space for the disk.
Is the disk hydralic (like the front) or cable ?
Thus,what engine do i have to search for Hyper 2 or Hyper 2 pro (is second i heard are used only in race scooters thus is very rare and expensive even used) ?
Any engine since 1998 used on NRG (wich also has factory mounted bigger wheels) or specificly search for Hyper 2 PRO version ?
Haven't had the pleasure of owning a LC version.
Yes, exactly. The water cooled version has a little hole for bearings and such. The air cooled model is closed and has this shaft hanging out there.
Best,
Daniel
I just got a NRG. I love it. I am super new to two wheels. Service guy told me that long turning for first starting in cold is normal. And the engine is brand new. Can you explain is it normal to crank the engine lets say 30 seconds at least for cold start ?
If so, you have a crankcase airleak, not a faulty carb setup.
Often, the cause is the crankshaft sealings. Try spraying starter fluid / carb cleaner ie towards the sealings when its running before it bogs. If it does'nt bog when applying starter fluid, its the sealings.
Good old mechanic trick:)
Regards,
Trond, Norway
'02 Piaggio Zip Athena Evo 80cc, blueprint++
Keep it up :)
I have noticed that you missed some biger diferences
1. Diferent porting of the intake canals on the cilinder side
2. Cone where the wather pump comes is for a couple of angles diferent than the old version
Now with this ocassion,i want to swap the old engine with hyper 2 Water Cooled and disk brake.
Wikipedia says that any Hyper 2 engine since 1998 can be water or air cooled (depending on the version it is built as) the same beeing true with disk brakes.
I can all the engine can be converted but not all have disk from the factory.
I also need to use a bigger wheel to have space for the disk.
Is the disk hydralic (like the front) or cable ?
Thus,what engine do i have to search for Hyper 2 or Hyper 2 pro (is second i heard are used only in race scooters thus is very rare and expensive even used) ?
Any engine since 1998 used on NRG (wich also has factory mounted bigger wheels) or specificly search for Hyper 2 PRO version ?
Great read, but i have a totally different question i hope you can help me with.
Do you know if the Piaggio Typhoon 50cc and 80cc engines are similar, as in can they take the same parts, like clutches, gear wheels, crank?
or is it a totally separate beast altogether.
Voy a ajustar las informaciones.
Hiper1 Tiene los canales del carter mas grandes,en la toma de admision donde esta la caja de laminas el hyper2 es mas pequeño,un tope que no se puede desmontar.
Por lo general son iguales,pero la version hyper2 cumplia la directiva euro3,por lo que viene mas limitado en todo.
En mi humilde opinion,el motor hiper1 de runner o energy es el motor mas potente que se fabrico para 49cc. ademas es una perfecta base para preparaciones a altisimo nivel,hoy en dia en los campeonatos italianos como malossi cup o polini cup,el 70% de las motos son zip sp1.
https://www.irishtimes.com/life-and-style/motors/young-gifted-and-mobile-vespa-1.365557
with the small 0.8" piston and the dual-cave carbs still in the later Hi-Per2 engines?
the article deals with the Vespa ET2 Iniezione C12 and the C122M engine.
Nobody realy wants to ride this engine which made one problem after the other when it s getting older. Piaggio called this engine 50ccm D. I. FAST (Fully Atomized Stratified Turbulence)
NRG, Runner, TPH, Stalker used the long engine housing, ZIP, ET2, Sfera and so on used the short one.
I believe for the long engine housing four different Versions exists and for the short housing three.
For example, early ET2 (engine C162M) has a ball bearing in the block for the primary shaft, no one in the cover. They also have the slotted hole for the ignition wiring, but oil dipstick and drain plug screw on the same side at the bottom of the housing.
Later C162M engines has all features of the HI-PER 2 engine but still the slotted hole for the ignition wiring.
I have a Derbi Boulevard 2T 2011 (Hi-PER2) I would like a bit more energy for steep slopes.
Is there any trim rate.
Happy-go-lucky
If you have a none pro set of cases but need the vacuum outlet for the fuel pump used on the newshape Runners you can punch it out of the old cases from behind, drill or punch out the blacking cap in the hole (depends on how new they are, some have the hole and a blacking cap and the earlier ones have solid aluminum there) and press the outlet in.
Luke
Thanks for the feedback! Really appreciated.
Best,
Daniel
